Stackable Packaging System for CMA22MCS PCIe/104 Single Board Computer & Controller
1.20 GHz Single Core Intel® Celeron® M (ULV 722)
Includes SATA34106HR 2.5" Hard Drive Carrier

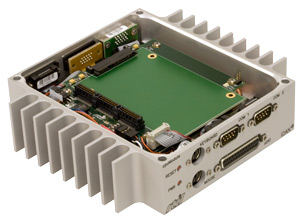

IDAN-CMA22MCS shown with card carrier installed

Key Features

  • Complete PC-compatible Single Board Computer
  • PCI/104-Express Stackable Bus Structure
    • PCIe Type 2 expansion bus (stacking up)
    • PCIe Type 1 expansion bus (stacking down)
    • PCI expansion bus
      • Standard stack-down configuration
      • Stack-through or stack-up optional
  • Intel Celeron M (ULV 722) Processor on 45nm
    • Clock Speed: 1.20 GHz
    • Max. Core Temperature: 105°C
  • 2GB Memory (Surface-Mounted)
  • Onboard Industrial SATA Flash Drive up to 32GB (4GB Standard)
  • Eight x1 PCIe Links
  • One x16 PCIe Link (configurable as one x8 or one x4)
  • Two SATA Ports
  • Four Serial Ports (RS-232/422/485)
  • Six USB 2.0 Ports
  • Gigabit Ethernet
  • Analog VGA & LVDS Panel
  • Advanced Digital I/O (aDIO)
  • Advanced Analog I/O (aAIO) available upon request
  • Stackable PCIe and PCI buses
  • Real Time Clock Battery backup
  • Modular rugged milled aluminum frames
  • Integral Structural Heatsink with Embedded Heatpipes & External Fins for superior heat dissipation
  • Complete PC-compatible motherboard
  • Maintains the PC/104 self-stacking bus concept
  • Allows quick interchangeability of modules
  • Each frame includes wiring, connectors, CMA22MCS cpuModule and SATA34106HR
  • 2.5" Hard Drive Carrier Module (Installation of Flash Drive available. May affect standard operating temperature.)
  • Aluminum Alloy - 6061, Temper-T6
  • Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
    • Additional paint options available upon request

External I/O Ports

  • 9-pin male D-Sub connector with RJ-45 Adapter
    • 1000/100/10 BASE-T Ethernet
    • Gigabit Ethernet
      • Intel 82567LM PHY + ICH9M Controller (PRO1000 Series)
      • 10/100/1000 Auto-negotiation
      • Jumbo Frame Support
      • PXE Network Boot
  • Two 9-pin male D-Sub connectors
    • Four RS-232/422/485 serial ports on two connectors, each connect configurable as:
      • One full RS-232 port with TxD, RxD, CTS, RTS, DSR, DTR, RI, and CD
      • One RS-422/485 port with TxD+, TxD-, RxD+, RxD-
      • Two RS-232 ports:
        • One with TxD, RxD, CTS, and RTS
        • One with TxD and RxD
      • One RS-232 port with TxD and RxD, and one RS-422/485 port with TxD+, TxD-, RxD+, RxD-
      • Two RS-422/485 ports each with TxD+, TxD-, RxD+, RxD-
    • 120 ohm termination for RS-422/485 Mode
    • Serial Ports Modes are BIOS-configured, no jumper settings required.
    • Standard PC 16C550 UART Interface
  • 9-pin male D-Sub connector
    • Two USB 2.0 Ports
      • Two ports onboard
      • Four additional ports available via PCIe/104 & ExpressPlatform
      • Over-current protection (500mA @ 5Vdc)
      • USB Boot capability
  • 15-pin female high density D-Sub Monitor connector & 20-pin female micro D-Sub LVDS Panel connector
    • SVGA and LVDS Panel
    • Intel Graphics Media Accelerator 4500MHD
    • Gen 5.0 graphics engine with 10 cores
    • Dynamic Video Memory (32MB – 256MB)
    • DirectX 10 Support
    • Supports Windows Vista Aero “Glass” Effects
    • Analog VGA and LVDS Panel Interfaces
  • 25-pin female D-Sub connector
    • One 8-bit-programmable I/O with Advanced Digital Interrupt Modes
      • Event Mode Interrupt generates an interrupt when any input bit changes
      • Match Mode Interrupt generates an interrupt when input bits match a preset value
      • External Strobe Mode latches 8 data inputs and generates and interrupt
    • One 4-bit port programmable as input or output
    • Two Strobes can be configured as readable inputs.
  • 6-pin female mini-DIN connector
    • PS/2 Mouse port
  • 6-pin female mini-DIN connector
    • PS/2 Keyboard port
  • Hardware Reset Button
  • ATX Power Button

Internal I/O Ports

  • SATA Controller
  • 18-pin SSD socket in 32-pin format:
    • Up to 32GB Onboard Industrial SATA Flash Drive (4GB Standard)
    • Natively supported by all major operating systems

Physical Attributes

  • Size: 152mm L x 162mm W x 41mm H (5.983"L x 6.617"W x 1.614"H)
  • Weight: Approximately 0.81 Kg (1.78 lbs.)
  • Standard Operating Temperature, 90% humidity non-condensing
    • 1.20 GHz: -40 to +85°C
    • 1.86 GHz: -40 to +70°C
  • Storage Temperature: -25 to +85°C
  • Power requirements: 13 W @ 5 V Typical

cpuModule Specifications:

Peripheral Module Specifications:

Documentation and Downloads

Ordering Information

Part Number Description Value
IDAN-CMA22MCS1200HR-2048   1.20GHz PCI/104-Express cpuModule with 2GB DDR2 SDRAM and 4GB flash in modular IDAN frame


—  Sequentially laminated PCB fabricated in accordance with IPC-6012 Class 3 Standards  —
*OEM price includes 2GB soldered SDRAM and 4GB flash drive (larger flash drive sizes available)
