IDAN-GPS35190
Stackable Packaging Systems for GPS35190HR Trimble GPS Carrier Modules
 |

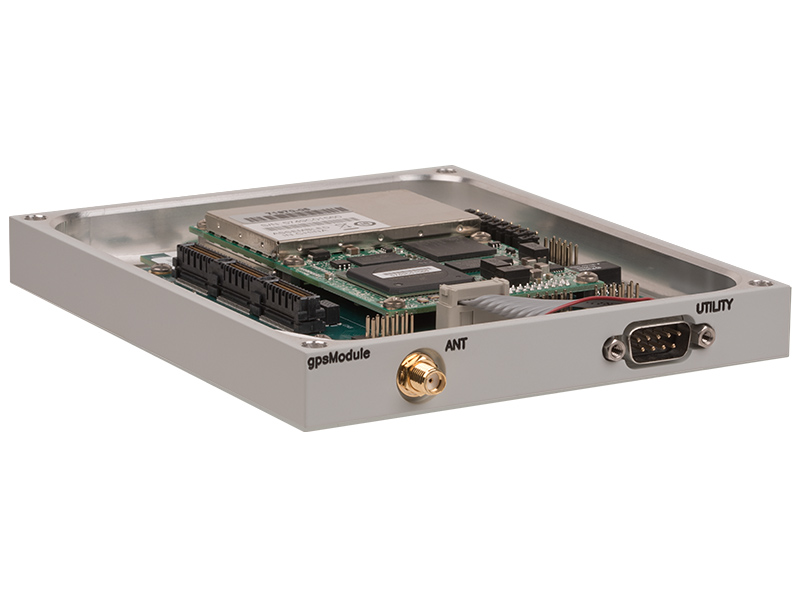

| IDAN-GPS35190HRS (single-high configuration) |
 |
| IDAN-GPS35190HRD (double-high configuration) |
Key Features
- PCI/104-Express stackable bus structure
- PCIe universal expansion bus (Type 1 or Type 2)
- Modular rugged milled aluminum frames
- Maintains the PC/104 bus self-stacking concept
- Allows quick interchangeability of modules
- Two configurations available
- Single-high with antenna and utility connector
- Double-high with all board connections
- Frame includes a GPS35190HR, wiring and integrated connector receptacles
- Aluminum Alloy - 6061, Temper-T6
- Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
- Additional paint options available upon request
External I/O Ports
- IDAN-GPS35190HRS (single-high configuration)
- Front panel:
- One SMA bulkhead adapter (plug): GPS
- One 9-pin D-sub (pins): Utility
- Front panel:
- IDAN-GPS35190HRD (double-high configuration)
- Front panel:
- One SMA bulkhead adapter (plug): GPS
- One 9-pin D-sub (sockets): Utility
- One 9-pin D-sub (pins): Ethernet
- One 9-pin D-sub (pins): CAN bus
- One 9-pin D-sub (pins): Serial
- One 9-pin D-sub (pins): USB
- Front panel:
Recommended Accessories
Physical Attributes
- Dimensions
- IDAN-GPS35190HRS
- Length: 5.983 inches (152 mm)
- Width: 5.117 inches (130 mm)
- Height: 0.669 inches (17 mm)
- IDAN-GPS35190HRD
- Length: 5.983 inches (152 mm)
- Width: 5.117 inches (130 mm)
- Height: 1.339 inches (34 mm)
- IDAN-GPS35190HRS
- Weight
- IDAN-GPS35190HRS: Approximately 0.46 lbs. (0.21 Kg)
- IDAN-GPS35190HRD: Approximately 0.92 lbs. (0.42 Kg)
- Standard Operating Temperature, 90% humidity non-condensing -40 to +85°C
- Storage Temperature: -55 to +125°C
- MTBF: 2,602,250 hours
- Input Power Requirements: 5.0 VDC
- Typical Power Consumption: 0.5 W
- Note: Specifications for IDAN-GPS35190HR carrier module only. Specifications for GPS module may vary.
Board Level Specifications
Documentation and Downloads
Ordering Information
| Part Number | Description | Value OEM |
|---|---|---|
| IDAN‑GPS35190HRS | PCIe/104 Trimble BD970 GPS carrier in single-high, modular IDAN configuration | $1445 |
| IDAN‑GPS35190HRD | PCIe/104 Trimble BD970 GPS carrier in double-high, modular IDAN configuration | $1495 |
| The configurations above are also available with the Trimble BD970 GPS module installed. | RFQ | |
RTD Embedded Technologies, Inc.
Designed and Made in the USA
sales@rtd.com | +1-814-234-8087
