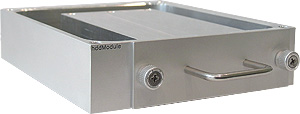

Removable Hard Drive Carrier Module
Stackable Packaging System for CMT36106HR
|
 |
Key Features
- PC/104 form factor
- Modular rugged milled aluminum frames
- Maintains the PC/104 bus self-stacking concept
- Allows quick interchangeability of modules
- Frame includes:
- CMT36106HR hard drive carrier
- Removable hard drive drawer
- Aluminum Alloy - 6061, Temper-T6
- Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
- Additional paint options available upon request
- Decodes the IDE interface from the EIDE bus
- Requires additional EIDE controller
- Available with AMD Geode™ LX Series Single Board Computers
- Supports
- IDE ATA series 2.5" rotating drives
- IDE ATA series 2.5" flash drives
Physical Attributes
- Dimensions
- Length: 5.983 inches (152 mm)
- Width: 5.117 inches (130 mm)
- Height: 0.669 inches (17 mm)
- Weight: Approximately 0.64 lbs. (0.30 Kg)
- Standard Operating Temperature, 90% humidity non-condensing -40 to +85°C
- Storage Temperature: -55 to +125°C
- MTBF: 3,816,876 hours
- Input Power Requirements: +5 VDC
- Typical Power Consumption: (drive current)
Board Level Specifications
Documentation and Downloads
Ordering Information
| Part Number | Description | Value OEM |
|---|---|---|
| IDAN‑RHD‑SYS104/FPxx | 2.5-inch Hard Drive Carrier with Flash Drive Installed (hard drive options available) |
RFQ |
| IDAN‑RHD‑SYS104 | 2.5-inch Hard Drive Carrier with Removable IDE Drive Drawer For use with 2.5-inch IDE Drives |
$1895 |
| IDAN‑RHD‑DRAWER/FPxx | Removable Drive Drawer with Flash Drive Installed (hard drive options available) |
RFQ |
| IDAN‑RHD‑DRAWER | Removable IDE Drive Drawer for use with 2.5-inch IDE Drives | $995 |
