GPS Receivers with Linx Engines

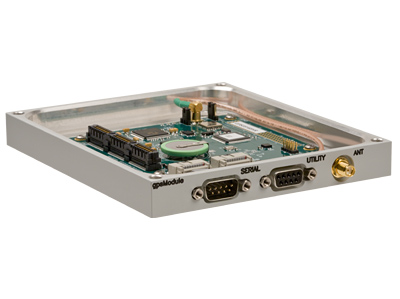

Stackable Packaging System for GPS35162HR and GPS25162HR GPS Modules
Operating Temperature -40° to +85°C
Mouseover thumbnails below to view larger images. |
Key Features
- PC/104 stackable bus structure
- Modular rugged milled aluminum frames
- Maintains the PC/104 bus self-stacking concept
- Allows quick interchangeability of modules
- Frame includes a GPS module, wiring and integrated connector receptacles
- Aluminum Alloy - 6061, Temper-T6
- Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
- Additional paint options available upon request
External I/O Ports
- Front Panel
- One SMA bulkhead adapter (female) for GPS antenna connection
- One 9-pin D-sub receptacle (female sockets) for utility port
- One 9-pin D-sub receptacle (male pins) for RS-232 serial port connection
Physical Attributes
- Dimensions
- Length: 5.98 inches (151.8 mm)
- Width: 5.12 inches (129.8 mm)
- Height: 0.67 inches (17.0 mm)
- Weight: TBD
- Standard Operating Temperature, 90% humidity non-condensing -40 to +85°C
- Storage Temperature: -55 to +125°C
- Input Power Requirements: +5 VDC
- Typical Power Consumption: TBD
Board Level Specifications
Documentation and Downloads
Ordering Information
| Part Number | Description | Value OEM |
|---|---|---|
| IDAN-GPS35162HRS | PCIe/104 GPS module in modular IDAN frame | $1445 |
| IDAN-SK-GPS35162HRS | PCIe/104 GPS module in modular IDAN frame, with cables and antenna kit | $1545 |
| IDAN-GPS25162HRS | PCI/104-Express GPS module in modular IDAN frame | $1445 |
| IDAN-SK-GPS25162HRS | PCI/104-Express GPS module in modular IDAN frame, with cables and antenna kit | $1545 |
