Embedded Video Controllers
Stackable Packaging System for VID34460ER (PCIe x4 link)

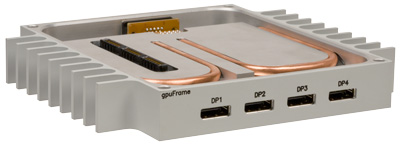

IDAN-VID34460HRS (front)

IDAN-VID34460HRS (back)

Key Features

• PCIe/104 stackable bus structure
• Modular rugged milled aluminum frames
• Maintains the PC/104 bus self-stacking concept
• Allows quick interchangeability of modules
• Frame includes a VID34460ER video module, internal wiring and external connector receptacles
• Aluminum Alloy - 6061, Temper-T6
• Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
  • Additional paint options available upon request




External I/O Ports

• Front Panel
  • Four DisplayPort receptacles
    • DisplayPort, DVI, and HDMI
    • Audio
• Rear Panel
  • One 15-pin D-sub receptacle (female sockets)
    • Analog VGA interface

Physical Attributes

• Dimensions
  • Length: 5.983 inches (152 mm)
  • Width: 6.617 inches (162 mm)
  • Height: 0.930 inches (24 mm)
• Weight: Approximately 0.46 lbs. (0.21 Kg)
• Standard Operating Temperature, 90% humidity non-condensing: -40 to +55°C
• Storage Temperature: -55 to +125°C

Board Level Specifications

• VID34860ER (AMD Radeon E6460 GPU)

Documentation and Downloads

• Hardware Manual

Ordering Information

Part Number	Description	Value OEM
IDAN-VID34460ER	PCIe/104 video controller with AMD Radeon E8860 GPU in modular IDAN frame	$2695
