VID34460ER
PCIe/104 AMD E6460 Video Controller
Operating Temperature -40° to +70°C
 |
| VID34460 Video Controller |
 |

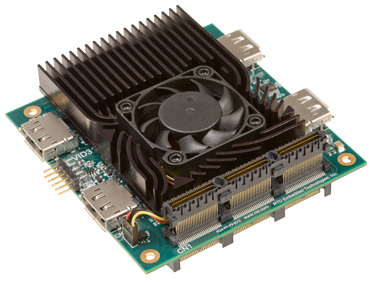

| (Active Heat Sink Included. Flat heat spreader options available.) |
 |
| Rugged IDAN configurations available |
Key Features
- PC/104 form factor
- PCIe/104 stackable bus structure
- Available in stackable, rugged enclosures
- AMD E6460 GPU
- Entry-level desktop graphics, multimedia and compute capabilities
- 160 shader processors
- 64-bit memory interface with 512MB GDDR5
- Microsoft® DirectX® 11 support
- Third generation unified video decoder
- Support for H.264, VC-1, MPEG-2/4 decode
- Dual HD decode, Blu-ray & Stereo 3D
- Up to 4 simultaneous displays with AMD Eyefinity1 technology
- AMD Accelerated Parallel Processing (APP) technology
- Versatile Video Output
- Analog and Digital
- DisplayPort++ enables support for any common video output standard
- Analog VGA
- DisplayPort
- DVI
- HDMI
- Utilizes the PCIe x4 Link (Gen 2, 5 GT/s)
- Optimized profile heat sink with mini-fan included
- See "Recommended Accessories" below for CPU compatibility
Description
The VID34460 is a PCIe/104 video controller that uses the AMD E6460 GPU. This powerful video controller offers 5 video outputs, up to 4 of which may be used simultaneously. By supporting DisplayPort++, the video outputs can interface with almost any standard monitor (analog or digital). The VID31460 provides an excellent power to performance ratio with the use of AMD PowerPlay technology. By utilizing the PCIe x4 link the VID34460 provides external GPU support to CPU with a PCIe x4 link.
Connector Interface
- Stackable Buses
- PCIe Type 2 expansion bus
- External I/O Connectors
- 4 DisplayPort
- 3 ports @ DisplayPort v1.2 and 1 port @ DisplayPort v1.1
- All four ports support DisplayPort++
- Support for latching DisplayPort cables
- Adapting to non-DisplayPort formats requires an adapter cable
- 10-pin right-angle header: Analog VGA
- 4 DisplayPort
Software
- Drivers provided for Windows 7 (32-bit and 64-bit)
- Natively supported in modern Linux distributions (xf86-video-ati 6.14.0 or later)
Recommended Accessories
- XK-CM37 Analog VGA Cable
- Compatible with RTD these CPUs:
- Intel Core i7
- CMA34CRS1500HR (PCIe/104, 1.5 GHz Single-Core)
- CMA34CRD1700HR (PCIe/104, 1.7 GHz Dual-Core)
- CMA34CRQ2100HR (PCIe/104, 2.1 GHz Quad-Core)
- Intel Core i7
- ADP070 or ADP055 – Required to interface to a PCIe/104 Type 1 connector, i.e. CMA22MVD or CMX32MVD
Physical Attributes
- Dimensions
- Length (L): 3.775 inches (95.89 mm)
- Width (W): 3.550 inches (90.17 mm)
- Stand-off Height
- Above the module: 0.866 inches (22.00 mm)
- Below the module: 0.600 inches (15.24 mm)
- Weight: Approximately 0.30 lbs. (0.14 Kg) with heat sink
- Standard Operating Temperature, 90% humidity non-condensing: -40 to +70°C
- Storage Temperature: -55 to +125°C
- MTBF: 894,286 hours
- Input Power Requirements (1 display):
- 0.60 A at 5 VDC
- 0.42 A at 12 VDC
- Typical Power Consumption (1 display):
- 8.0 W Total
- 3.0 W at 5 VDC
- 5.0 W at 12 VDC
Documentation and Downloads
Ordering Information
| Part Number | Description | Value OEM |
|---|---|---|
| VID34460ER | PCIe/104 Video Controller with AMD E6460 | $1595 |
