IDAN-SATA34106HRS
Stackable Packaging Systems for SATA34106HR 2.5 inch Hard Drive Carriers




Key Features

  • PCIe/104 stackable bus structure
    • PCIe Type 2 expansion bus
    • SATA Interface with lane shifting
  • Modular rugged milled aluminum frames
  • Maintains the PC/104 bus self-stacking concept
  • Allows quick interchangeability of modules
  • Frame includes SATA34106 hard drive carrier
  • Aluminum Alloy - 6061, Temper-T6
  • Finish - MIL-PRF-85285 polyurethane topcoat, per FED-STD-595, color 36495 (light gray). Panel engravings per FED-STD-595, color 37038 (black).
    • Additional paint options available upon request
  • Requires additional SATA controller (note that RTD CPUs with Type 2 PCI Experss connectors satisfy this requirement)

Supports

  • SATA series 2.5" Flash drives

Physical Attributes

  • Dimensions:
    • Length: 5.983 inches (152 mm)
    • Width: 5.117 inches (130 mm)
    • Height: 0.669 inches (17 mm)
  • Weight: Approximately 0.46 lbs. (0.21 Kg)
  • Apacer SAFD series Drive Temperature Rating:
    • Standard Operating Temperature, 90% humidity non-condensing: -40 to +85°C
    • Storage Temperature: -40 to +100°C
  • SATA34106 Temperature Rating (without drive installed):
    • Standard Operating Temperature, 90% humidity non-condensing: -40 to +85°C
    • Storage Temperature: -55 to +125°C
  • Power requirements (Drive Current) + (Board Power) typical
    • Apacer’s SAFD series drives
      • Active Mode: 2.4 W
      • Idle Mode: 1.4 W
    • Board without a drive: 0.7 W

Board-Level Specifications

Documentation and Downloads

Ordering Information

Part Number Description Drive Type Value
 OEM*

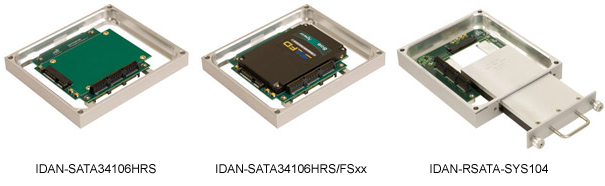

IDAN-SATA34106HRS   PCIe/104 2.5" SATA Drive Carrier

$495

IDAN-SATA34106HRS/FSxx   2.5" Hard Drive Carrier with Apacer Flash Drive Installed
  (hard drive options available)
Flash RFQ
Click here for IDAN-RSATA-SYS104 with Removable drive
